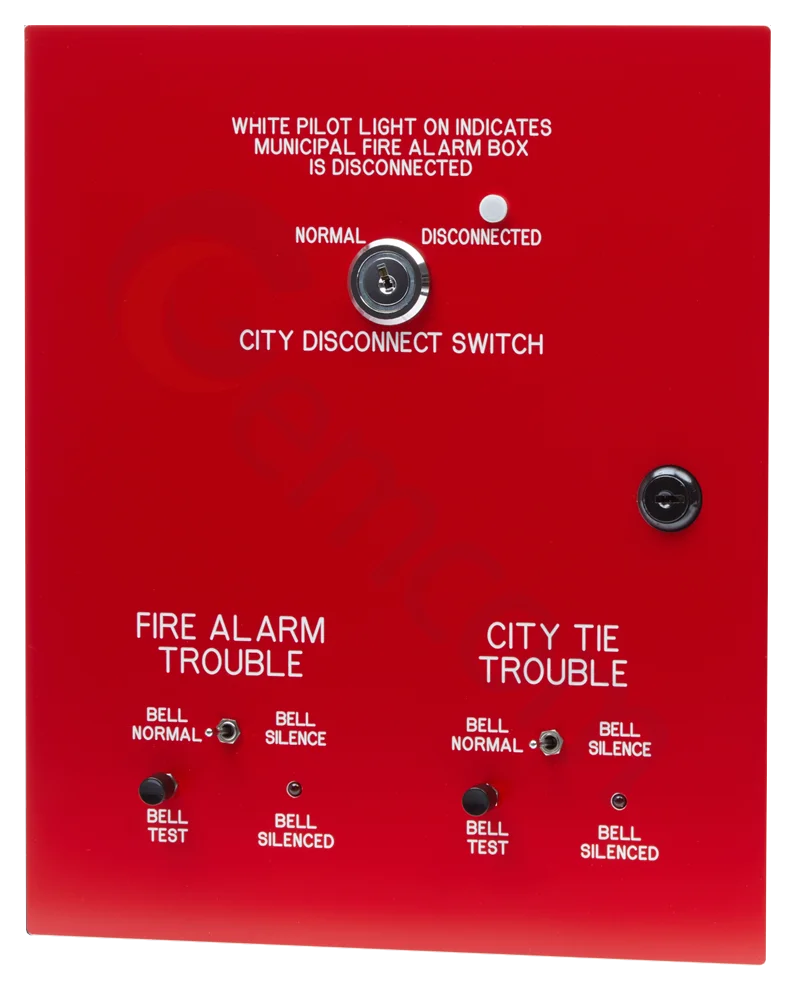

CBC Replacement Door Vertical
The CBC Replacement Door Vertical is a replacement for an existing Notifier™ Class 1/2 Chicago Building Code Panel Door. It is a complete replacement that eliminates the AC source wiring, which is no longer required and fits on the existing enclosure. A new terminal strip mounted on a metal plate is provided and installs with self tapping screws into the existing back box.
Features
- An extra set of contacts is available upon request for control panel monitoring.
- Removable key switches enhance security, allowing operation in the left-position only.
- Standard panel operates on 24VDC and is wired with a negative common. Positive is available upon request.
- Designed to seamlessly integrate into fire alarm networks, our panel offers intuitive functionality and robust performance.
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 17.5 × 8.75 × 4.8125 in |
| Wiring Common | Negative, Positive |
| Orientation | Horizontal, Vertical |
Installation
The City Tie Replacement Door is a replacement for an existing Notifier™ Class 1 and Class 2 Chicago Building Code Panel Door. It is a complete replacement that eliminates the AC source wiring, which is no longer required, and fits on the existing enclosure. A new terminal strip mounted on a metal plate is provided and installed with self-tapping screws into the existing backbox.
Panels must be installed within five to six (5-6) feet of the entrance to a building. As always, please review the current codes to ensure compliance with your local AHJ.
Gemcom’s City Tie Disconnect Panels are designed to comply with the Class 1 and 2 type building requirements for the City of Chicago.
